Seismic Acquisition & Processing in Bengkulu Region

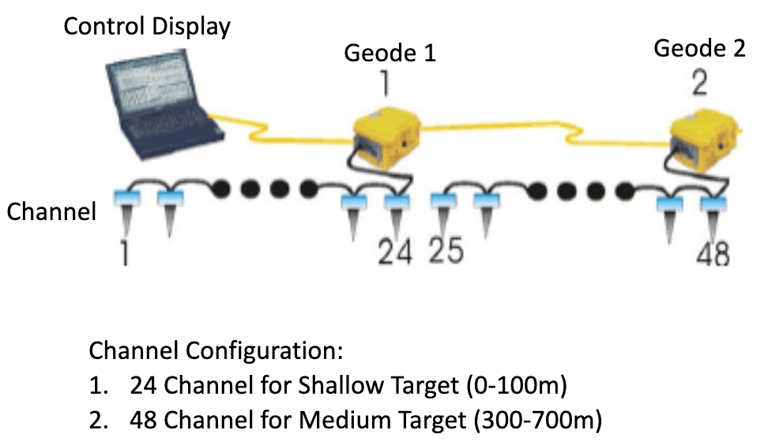

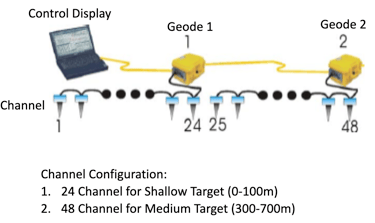

Figure 1. Array layout.

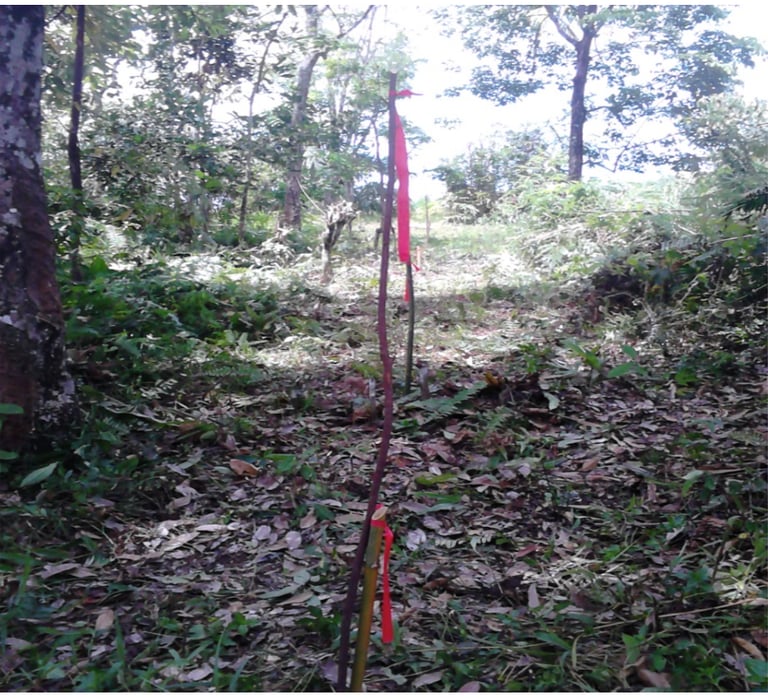

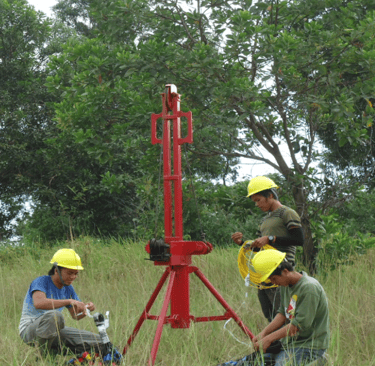

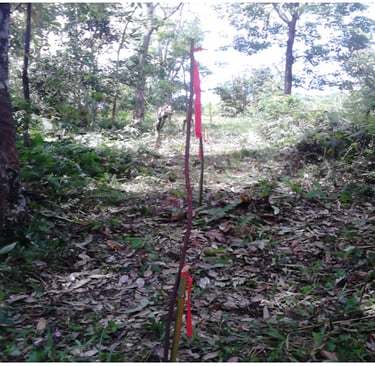

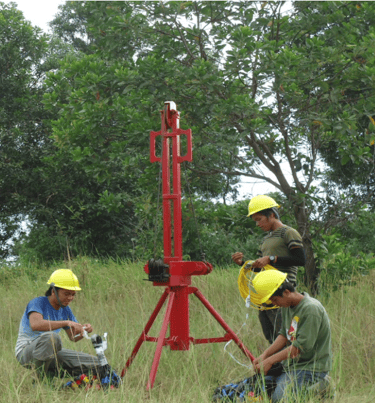

Figure 2. (a) Seismic line marked with flagging tape, (b) Accelerated weight drop device.

(a)

(b)

An 80kg weight is used in combination with a 120kg force generated by a rubber accelerating device, which is tightened using a hand winch, resulting in a total impact force of 200kg. For deeper seismic penetration (more than 200m), another energy source, such as an explosive charge, is recommended.

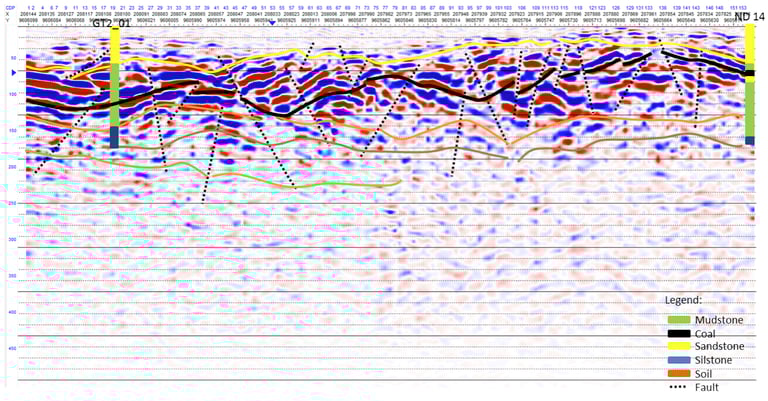

Figure 3. Seismic profile and interpreted geological structure.
