3D Density Modeling from Microgravity Survey Results for Identifying Cavities and Soft Rock
october 26, 2024

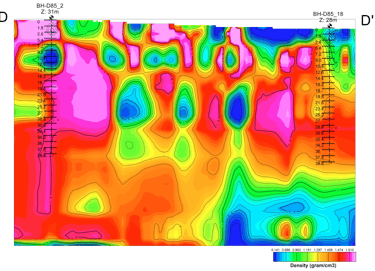

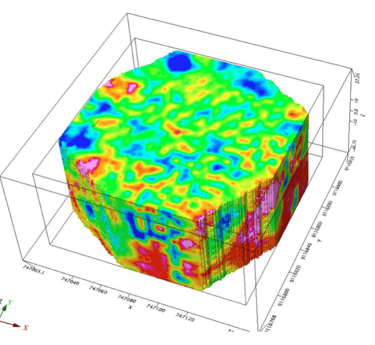

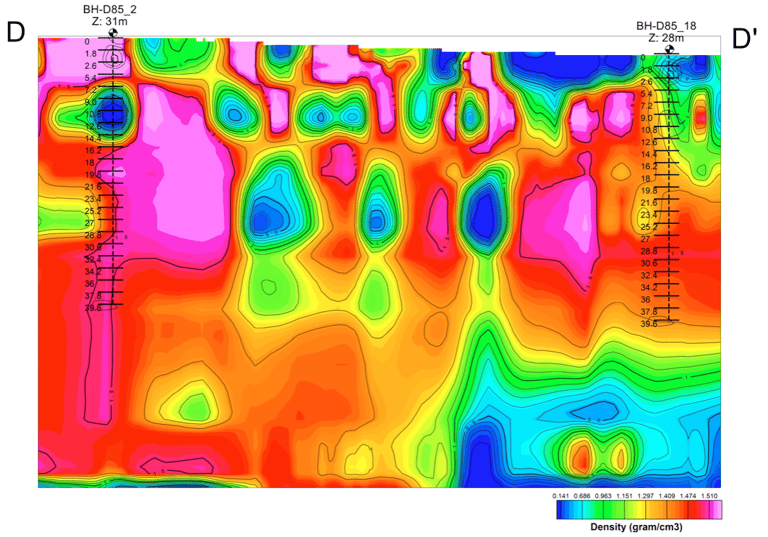

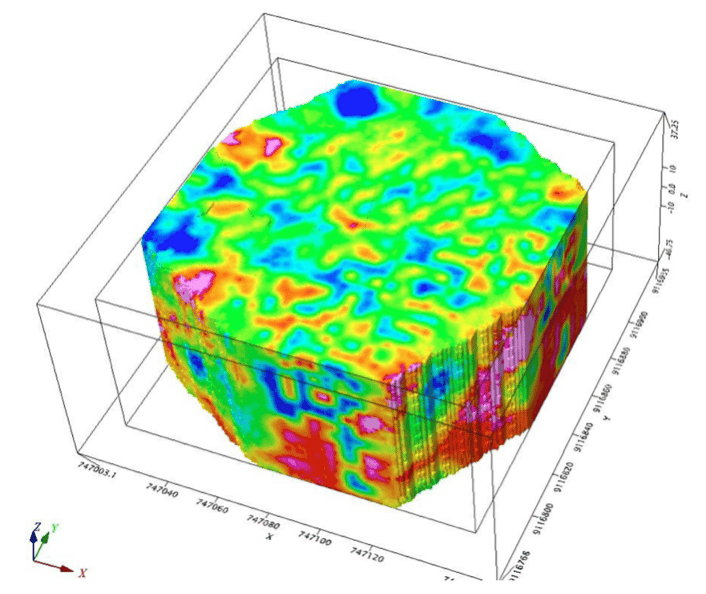

Figure 1. 3D model of microgravity data (left) and Vertical slice of 2D model from D-D' section correlated to borehole (right).

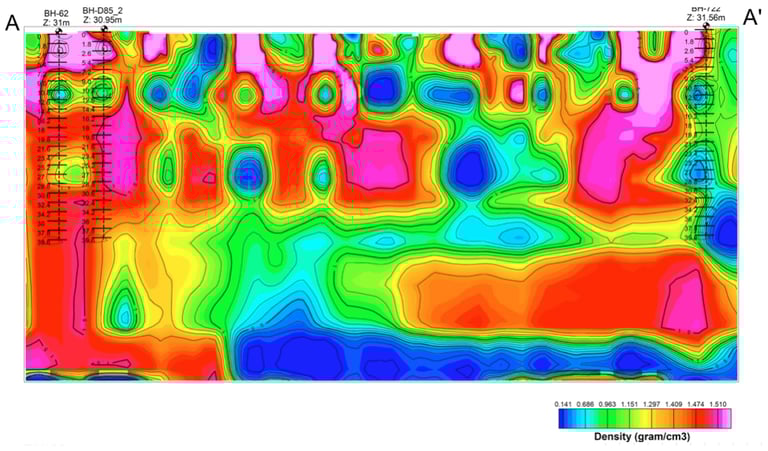

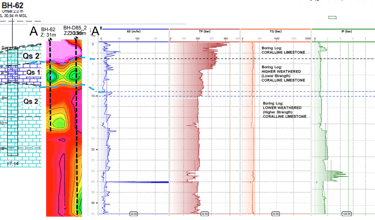

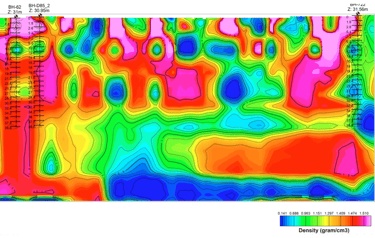

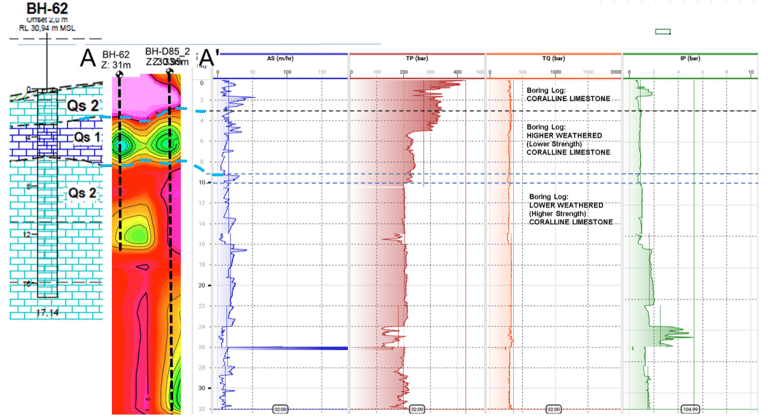

Figure 2. Left picture: Vertical slice of 2D model from A-A' section; right picture: correlation between lithology data from BH-62 with vertical slice of microgravity data in the middle and drilling parameters.
